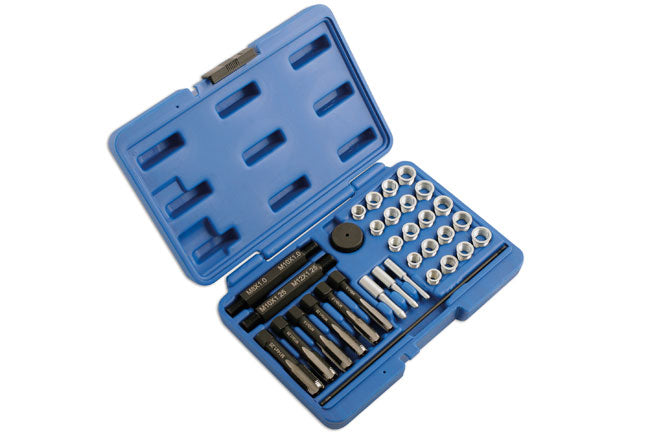

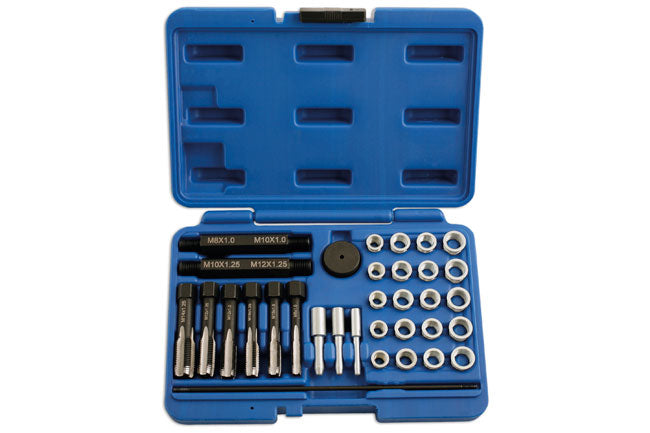

Laser 5206 Glow Plug Thread Repair Kit 33pc M8, M10 & M12

Save the head, not the plug. The Laser 5206 is a 33-piece glow plug thread repair kit — repair taps and thread coils for restoring stripped glow plug threads in alloy cylinder heads, covering 8mm, 10mm and 12mm plugs.

Alloy heads and seized glow plugs are a bad combination: the thread pulls before the plug moves, and at that point the choice is a thread insert or a head off the engine. This kit is the first option, done in situ. Chrome vanadium construction with a black phosphate finish.

Key Features

• 33-piece glow plug thread repair kit
• Repair taps and coils for repairing threads on alloy cylinder heads
• Re-threading kit for 8mm, 10mm and 12mm glow plugs
• Manufactured from chrome vanadium with a black phosphate finish

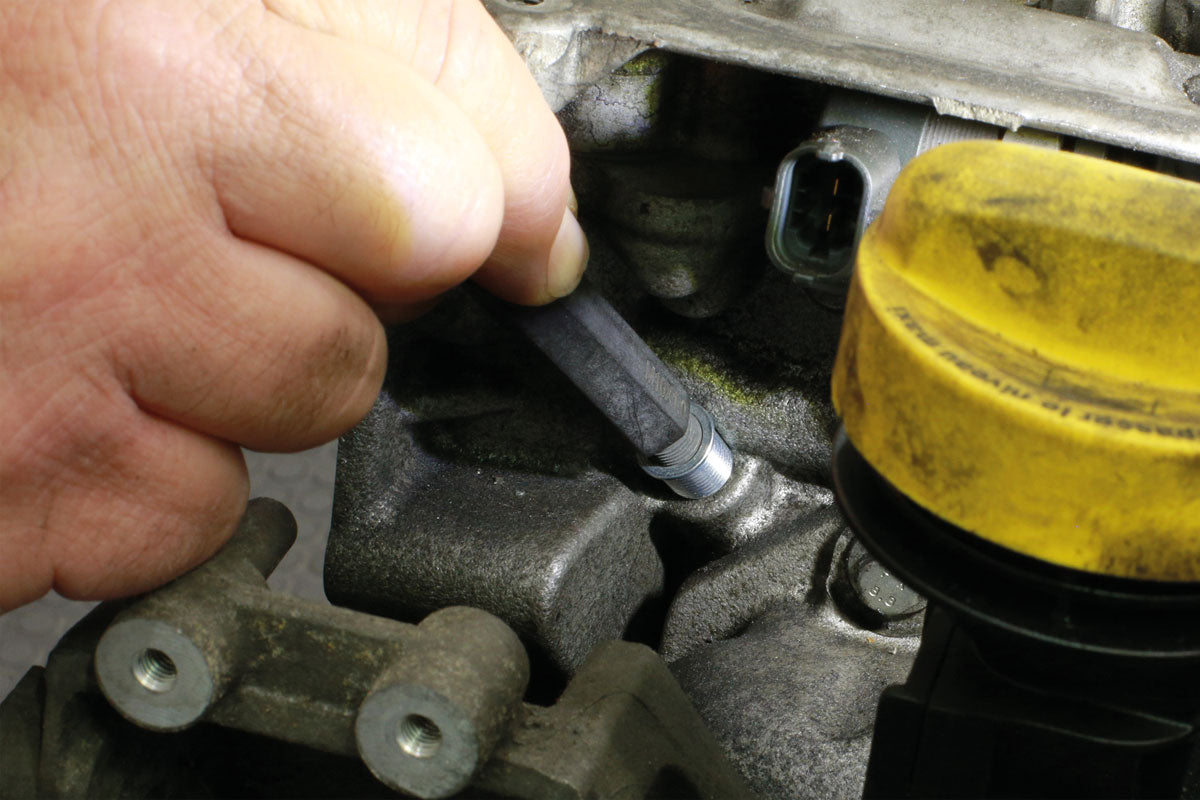

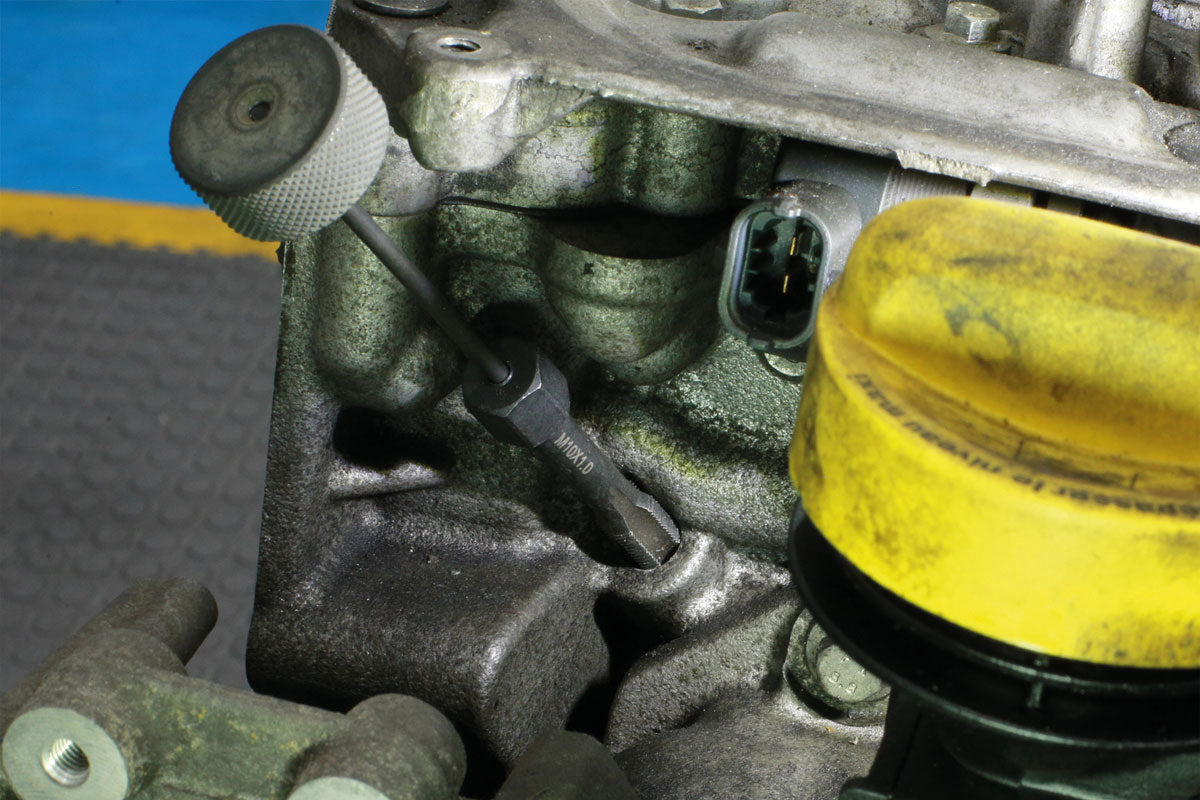

• Repairs a stripped thread in situ rather than removing the head
• Spare taps available individually in six sizes
• Spare thread coil kits available in packs of five

For diesel specialists, garages and vehicle technicians working on alloy cylinder heads.

Technical Specification

• Pieces — 33
• Application — Glow plug thread repair, alloy cylinder heads
• Plug Sizes Covered — 8mm, 10mm, 12mm
• Material — Chrome vanadium
• Finish — Black phosphate
• Spare Taps — M8 x 1.0 (2746), M10 x 1.0 (2747), M10 x 1.25 (2748), M12 x 1.0 (2749), M12 x 1.25 (2750), M14 x 1.25 (2751)
• Spare Thread Kits — Packs of 5: M8 x 1.0 (2632), M10 x 1.0 (2633), M10 x 1.25 (2634), M12 x 1.25 (2635)
• Manufacturer Code (MPN) — 5206
