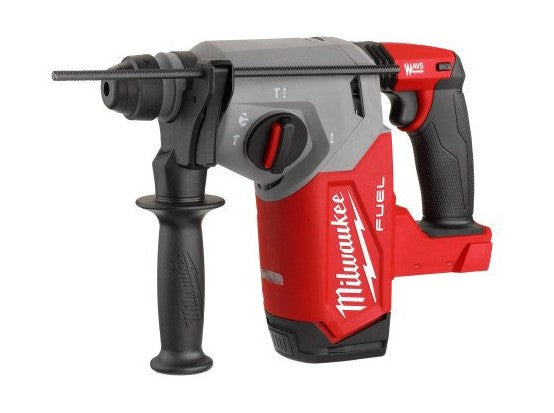

Milwaukee M18FH-0 M18 FUEL 4-Mode SDS-Plus Hammer 26mm — Body Only

2.5 joules, four modes, no lead. The Milwaukee M18FH-0 is the M18 FUEL 4-mode SDS-plus hammer — 26mm maximum in concrete, optimised for the 6 to 20mm holes that make up most of the work, and rated by Milwaukee as the fastest drilling rotary hammer in its class.

Four modes cover the full job: rotary hammer, hammer only, rotation only, and variolock for setting the chisel to a working position. AUTOSTOP shuts the tool down if the bit binds, which on a 2.5J hammer is the difference between a stopped drill and a wrenched wrist. The gear case is all metal, seating the gears properly for tool life rather than saving weight.

Body Only — battery and charger are NOT included.

Compatible with all Milwaukee M18 batteries and chargers.

Key Features

• The fastest drilling rotary hammer in its class leading to increased productivity
• Powerful hammer mechanism delivers 2.5J of impact energy at low 12.9 m/s² vibration
• Drills up to 125 Ø10 x 50mm holes on an M18 HIGH OUTPUT 5.5Ah battery charge
• 4-mode operation: rotary hammer, hammer only, rotation only and variolock chisel positioning
• AUTOSTOP shuts down the tool to protect the user from sharp movement in bind up situations
• All metal gear case for optimum seating of the gears and enhanced tool life
• Optimised for drilling 6 to 20mm diameter holes in concrete
• Compatible with M18 FCDDEXL and M18 FDDEXL dust extractors
• Anti-vibration system and LED work light
• POWERSTATE brushless motor, REDLINK PLUS electronics and REDLITHIUM battery compatibility
• Designed to achieve top performance with only moderate pressure
• 3 years warranty with online registration

For groundworkers, electricians, installers and anyone fixing into concrete all day. Supplied with side handle and depth gauge.

Technical Specification

• Voltage — 18V
• Battery Platform — Milwaukee M18 REDLITHIUM
• Motor — POWERSTATE Brushless
• Blow Energy — 2.5 J
• No Load Speed — 0-1,330rpm
• Percussion Rate — 0-4,800bpm
• Max Drilling, Concrete — 26mm
• Optimised Drilling, Concrete — 6-20mm
• Max Drilling, Wood — 28mm
• Max Drilling, Steel — 13mm
• Max Core Cutter, Brick and Limestone — 65mm
• Modes — 4 (chisel, variolock, hammer drill, drill)
• Tool Reception — SDS-plus
• Chuck Neck Diameter — 46mm
• Sound Pressure Level — 92.6 dB(A), K=3 dB(A)
• Sound Power Level — 103.6 dB(A), K=3 dB(A)
• Vibration, Hammer Drilling — 12.9 m/s², K=1.5 m/s²
• Vibration, Chiselling — 14.2 m/s², K=1.5 m/s²
• Weight (without battery) — 2.9kg
• Batteries Included — None
• Supplied With — Side handle, depth gauge
• Warranty — 3 years with online registration
• Manufacturer Code (MPN) — 4933478499
