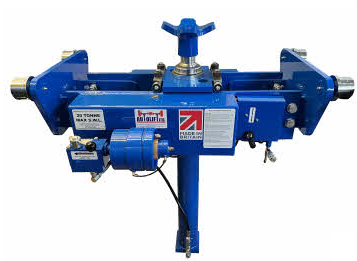

Autolift 20 Jacking Beam Without Safety Pins
Autolift 20 Jacking Beam Without Safety Pins
Product Code:AUTOLIFT20
Regular price
£3,900.00 GBP (inc VAT)
£3,250.00 GBP (ex VAT)
Regular price
Sale price
NOW £3,900.00 GBP (inc VAT)
Unit price
/
per
£3,250.00 GBP (ex VAT)
Taxes included.
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
THIS IS FOR THE 13 TONNE VERSION
- 170mm lifting stroke
- Fast acting air pump
- Our commercial jacking beams are manufactured to suit individual lift widths and specifications.
- Air over oil hydraulic design allows for increased performance and longevity of cylinder lifespan.
- Cylinders can be operated independently and transversely sliding rams for accurate positioning.
- Triple layer of safety features – Safety Lowering Valves, anti-burst valves & ram lock-off handles.
- Each jack comes with; 2x 200mm Extensions, 2x Vee Head Adapters & 2x Dish Head Pansies.
| Capacity | 13 Tonne lift (double rams) 6.5 Tonne per ram |
| Beam | Covering lift widths from 750mm - 1200 mm. (We can make outside of these dimensions so please get in touch). |
| Wheels | Spring loaded wheels which retract when the jack is under load so locking its position |
| Power Pack | A high output air pump produces the high output flow to the cylinders raising the rams quickly to the load. The design offers air over oil hydraulic power for advance and retract of the cylinders. Control is by a single air valve. Up for advance and power lift and down for retract. |
| Rams | The two double acting hydraulic cylinders have a 170 mm stroke. Top quality chrome plated rods are used as well as the latest seal technology to ensure a long and trouble free life. Each cylinder is fitted with safety hose burst valve and a 90 degrees movement isolation valve for easy visual confirmation of its position. |
