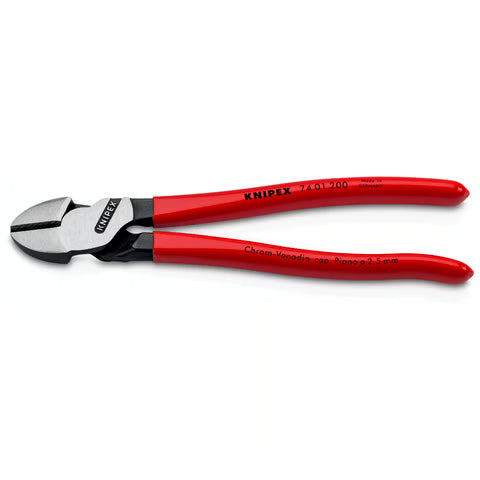

Knipex 74 01 200 High Leverage Diagonal Cutter 200mm

Cut piano wire without cutting your hand off at the wrist. The Knipex 74 01 200 is a 200mm high leverage diagonal cutter — the jaws sit unusually close to the pivot, which is what turns a hard cut into an easy one and lets it take 2.5mm piano wire, 3.0mm hard wire and 4.2mm nails.

Knipex rate the geometry at around a 20% energy saving against a conventional cutter of the same length: the cutting edge angle, the transmission ratio and the handle shape are matched to each other rather than designed separately. The edges are induction-hardened to approximately 64 HRC on chrome vanadium heavy-duty steel, forged and multi-stage oil hardened, on a forged-in axle built for continuous stress.

Key Features

• High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
• Precision cutting edges additionally induction-hardened to approximately 64 HRC
• Suitable for all wire types including piano wire
• Cuts medium hard wire to Ø4.2mm, hard wire to Ø3.0mm and piano wire to Ø2.5mm
• Chrome vanadium heavy-duty steel, forged and multi-stage oil hardened
• Forged-in axle for work under continuous stress
• Black atramentized finish with polished head
• Handles with plastic coating
• 200mm length fits most work bags and tool cases
• Manufactured to DIN ISO 5749
• Made in Germany
• 263g

For electricians, motor trade, site and industrial use — and the size most people carry when one pair has to cover everything.

Technical Specification

• Length — 200mm
• Dimensions — 200 x 51 x 15mm
• Weight — 263g
• Cutting Capacity, Medium Hard Wire — Ø4.2mm
• Cutting Capacity, Hard Wire — Ø3.0mm
• Cutting Capacity, Piano Wire — Ø2.5mm
• Cutting Edge Hardness — Approximately 64 HRC
• Material — Chrome vanadium heavy-duty steel, forged, multi-stage oil hardened
• Finish — Black atramentized, polished head
• Handles — Plastic coating
• Joint — Forged-in axle
• Standard — DIN ISO 5749
• Country of Origin — Germany
• Manufacturer Code (MPN) — 74 01 200
