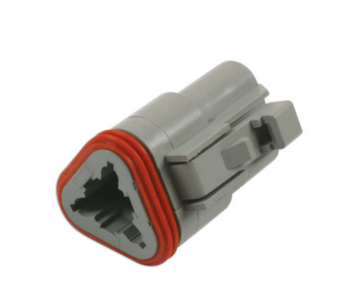

Laser 37499 Deutsch 3 Pin Plug Connector Kit 5pc

Heavy duty connectors which protect against the weather, dirt and high temperatures.

Connectors have a locking mechanism to prevent the wires and terminals vibrating free. Once cable has been crimped onto the terminal, push the terminal through the back of the connector until you hear a 'click'. Turn the connector around and insert the wedge lock plate until you hear the 'click' again which will give a secondary securing lock for the terminals.

The pin terminals are inserted into the connector receptacles and the socket pin terminals are used on the connector plugs.

For a professional crimp please use our Laser Part No 7533.

Industry standard size 16.

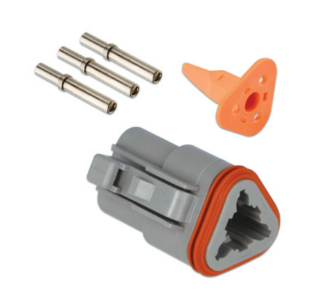

• Kit contains - 3 pin connector with red weatherproof seal,
• Plug wedgelock which locks in the terminals,
• Socket non insulated terminals to suit 0.5 - 1.5mm² cable (20-16AWG). Terminal replacement, Part No. 37511.
• For a professional crimp please use our Laser Part No. 7533.
• Included in the Connect assorted Deutsch DT connector repair kit, Part No. 37415.
