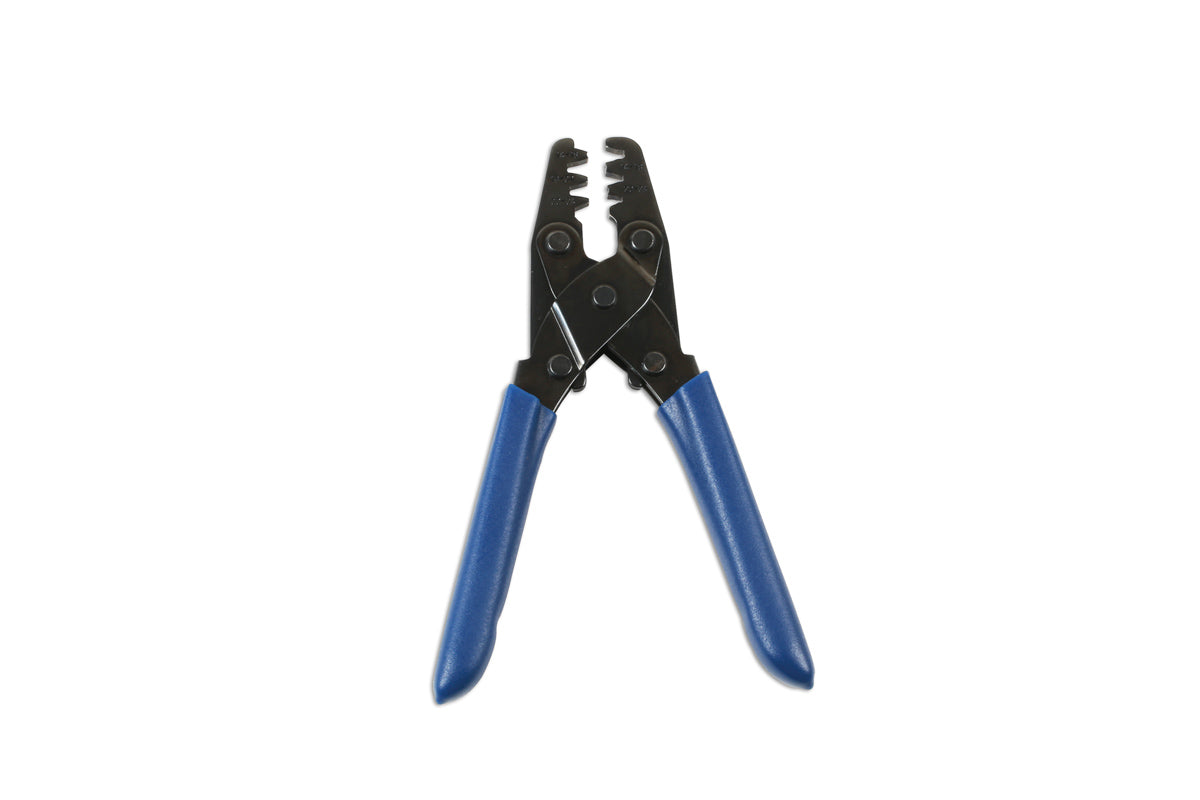

Laser 7642 Open Barrel Crimping Pliers 210mm 14-24 AWG

The right crimp on a Deutsch pin, in the space you actually have. The Laser 7642 is a 210mm open barrel crimping plier for non-insulated open barrel terminals — slim jaws that get into a loom or behind a bulkhead where a full-size ratchet crimper simply will not fit.

The jaws carry a range of crimping grooves covering 0.45mm² to 2.5mm² wire (24 to 14 AWG), with the conductor and insulation crimped in separate cavities as the terminal design intends. Hardened steel construction, with an ergonomic soft grip coating on the handles.

Key Features

• Crimps non-insulated open barrel terminals
• Suitable for 0.45mm² to 2.5mm² wire (24 to 14 AWG)
• Applications include Deutsch, electronic sensor and Weatherpack terminals
• Slim jaws for use in tight, restricted areas
• Range of crimping grooves across the wire sizes
• Hardened steel construction
• Ergonomic soft grip cushioned handles
• 210mm length
• 300g
• A specialist tool designed to save time and produce consistent results when fitting terminals

For auto electricians, loom repairers and anyone fitting OEM-style connectors rather than crimping and taping.

Technical Specification

• Type — Open barrel crimping pliers
• Terminal Type — Non-insulated open barrel
• Wire Range — 0.45mm² to 2.5mm² (24-14 AWG)
• Applications — Deutsch, electronic sensor, Weatherpack
• Length — 210mm
• Weight — 300g
• Construction — Hardened steel
• Handles — Cushioned soft grip
• Manufacturer Code (MPN) — 7642
