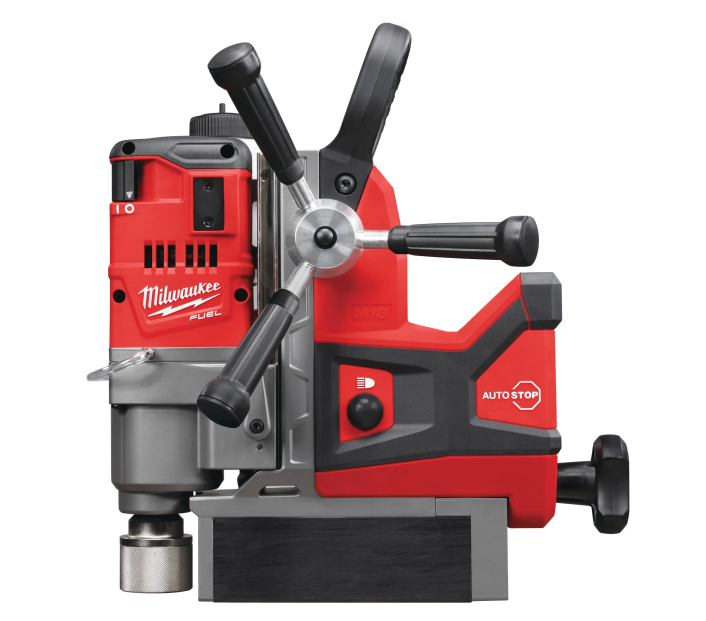

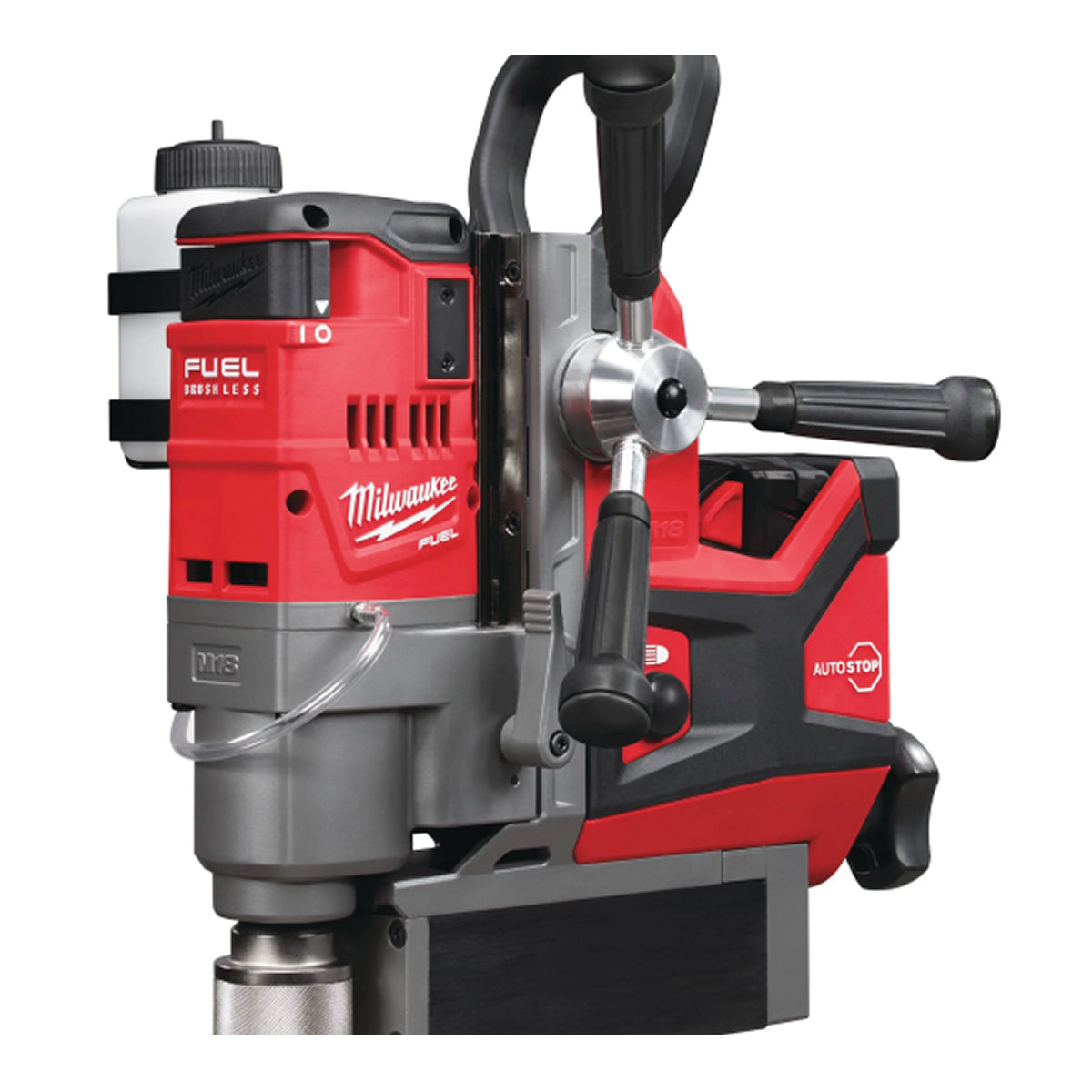

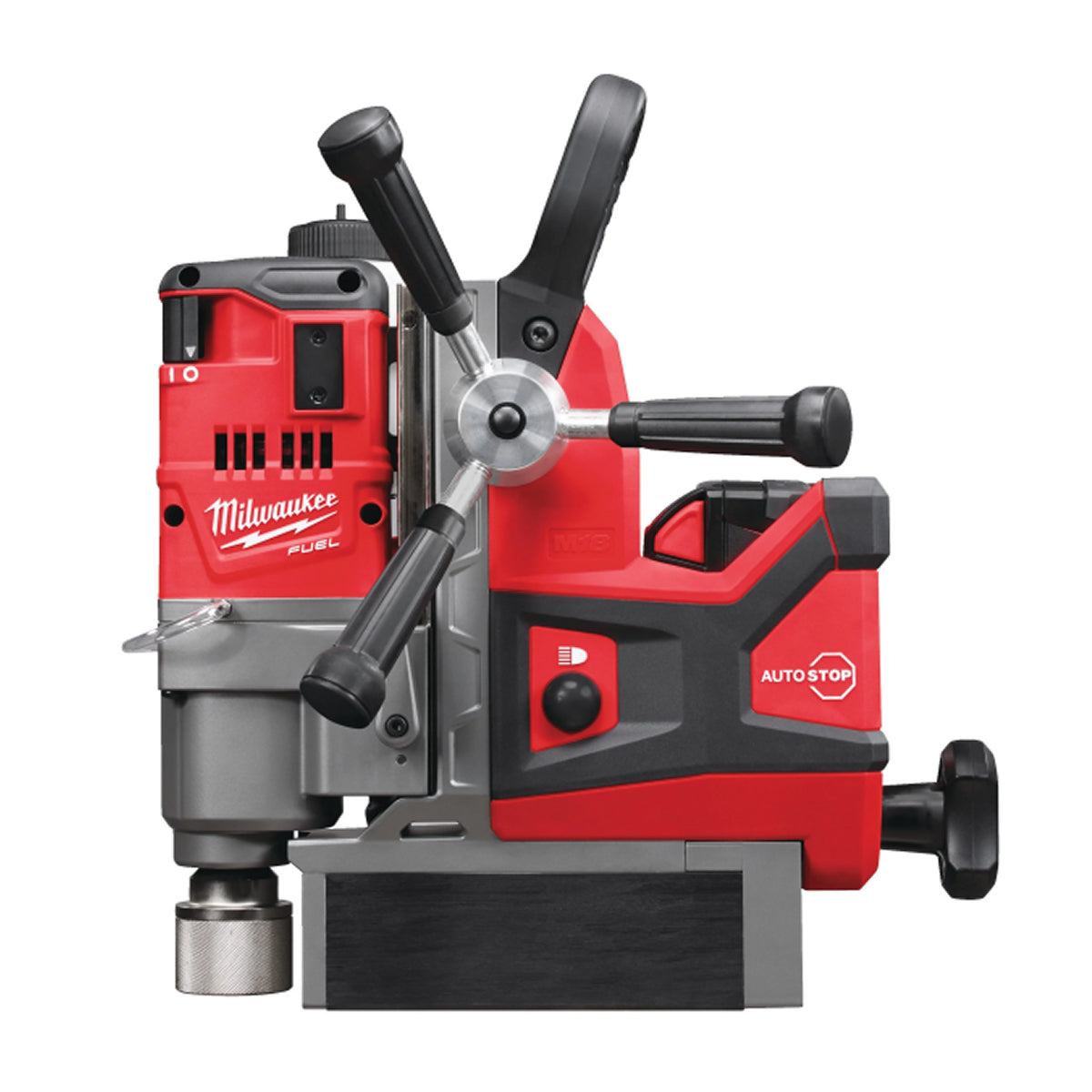

Milwaukee M18FMDP-0C M18 FUEL Magnetic Drilling Press 38mm Permanent Magnet — Body & Case

Corded mag drilling performance, no lead. The Milwaukee M18FMDP-0C is the M18 FUEL magnetic drilling press with permanent magnet — 38mm annular cutter capacity, 8,890N of holding force and around 40 holes of 18mm per battery charge, on structural steel where there is no power and no generator.

The permanent magnet is self-powered, so it holds without drawing current and cannot deactivate if the battery drains — the failure mode that matters most when a 12kg tool is stuck to a vertical beam. AUTOSTOP lift-off detection cuts power to the motor if excess rotation is detected, and the two-speed gearbox runs 400 or 690rpm to suit cutter diameter.

Body and case — battery and charger are NOT included.

Compatible with all Milwaukee M18 batteries and chargers.

Key Features

• POWERSTATE brushless motor provides corded drilling performance
• Strongest magnet holding force on 6mm (1/4") steel — 8,890N at drill point pressure
• Self-powered permanent magnet operates without electricity and will not deactivate if the battery is drained
• AUTOSTOP lift-off detection cuts power to the motor if excess rotation is detected
• Around 40 holes of 18mm diameter per battery charge
• Maximum annular cutter diameter 38mm, maximum depth of cut 50mm

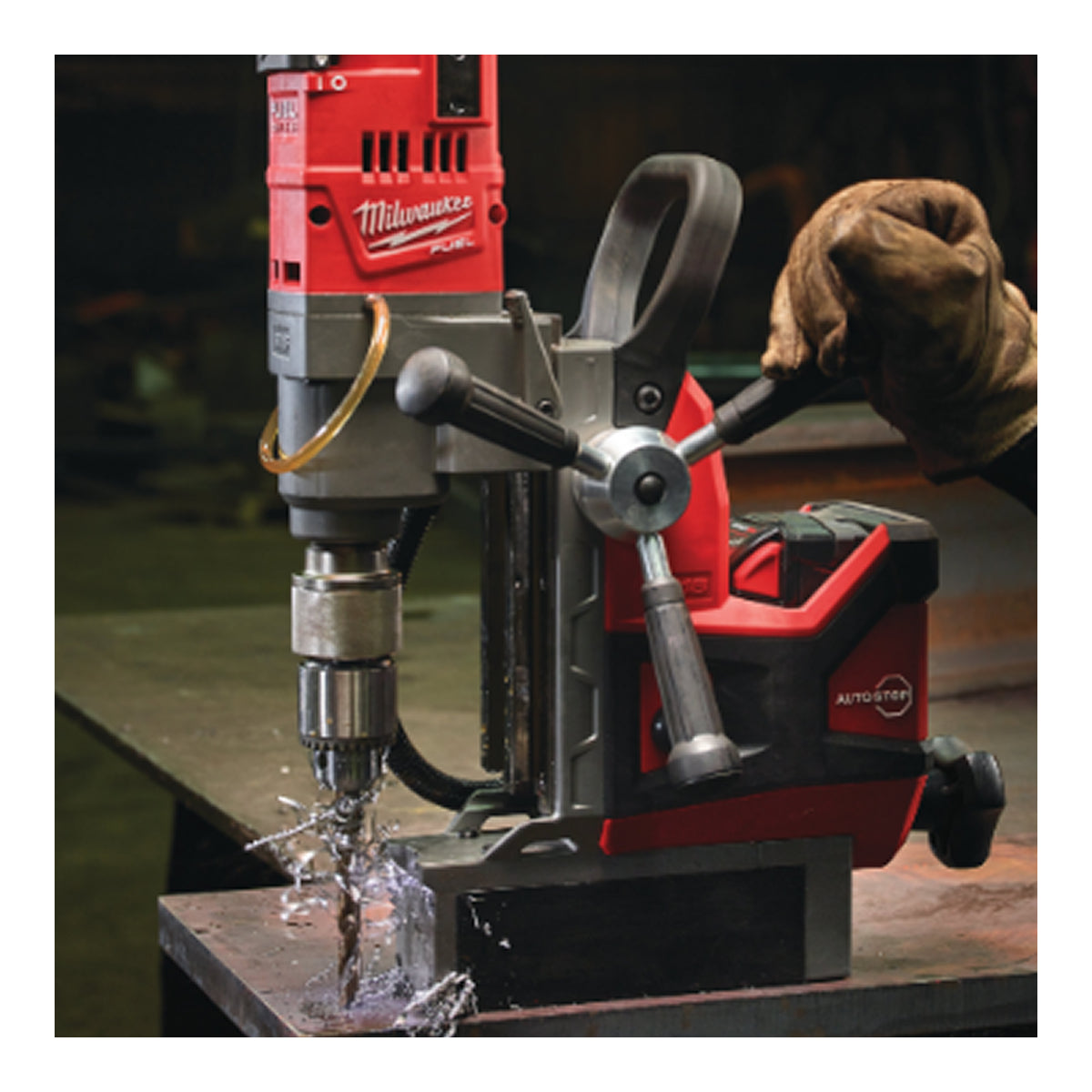

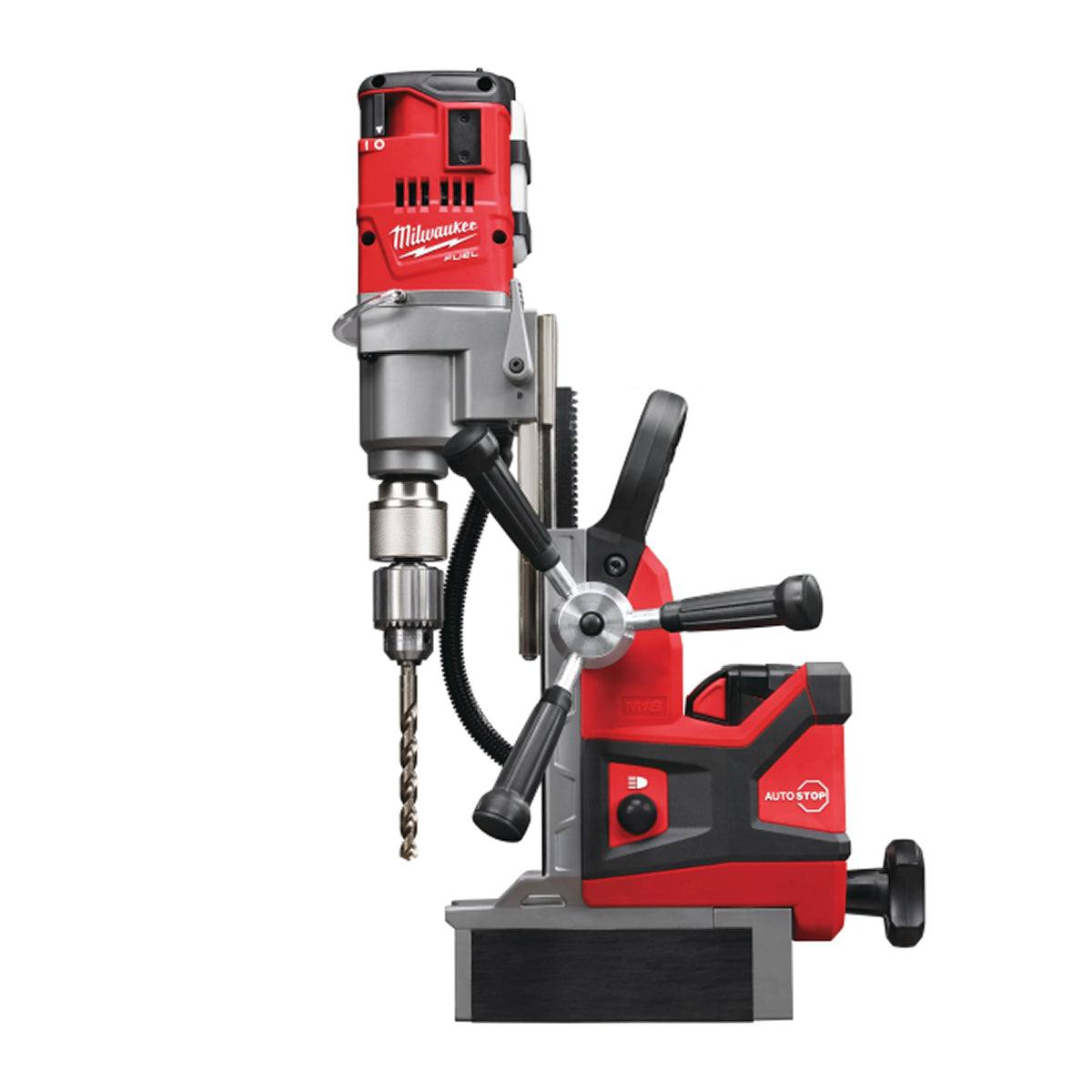

• Maximum solid drill bit capacity 13mm
• Two speed gearbox — 400 and 690rpm to match cutter diameter

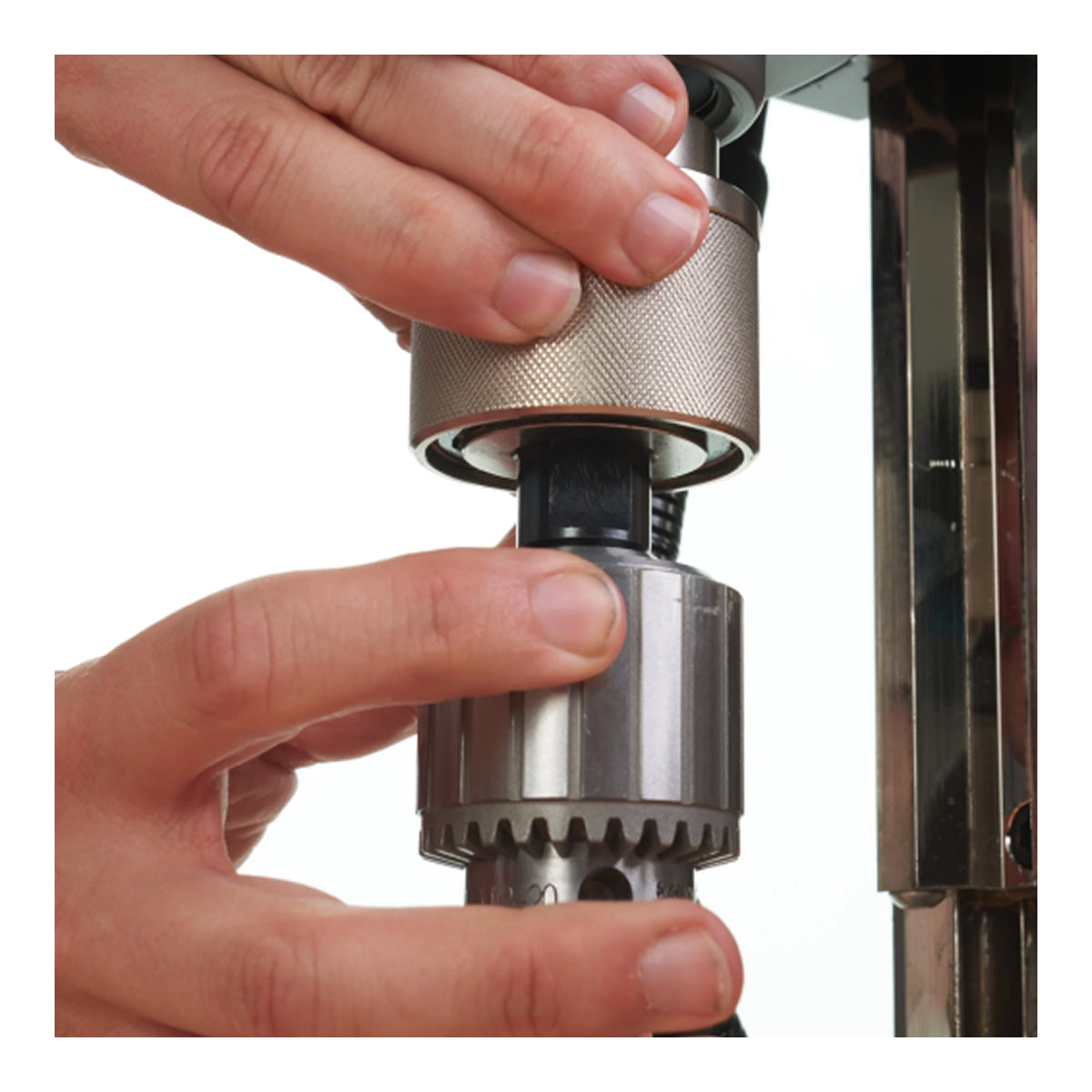

• Keyless 19mm Weldon reception for fast and easy accessory changes
• 146mm stroke length

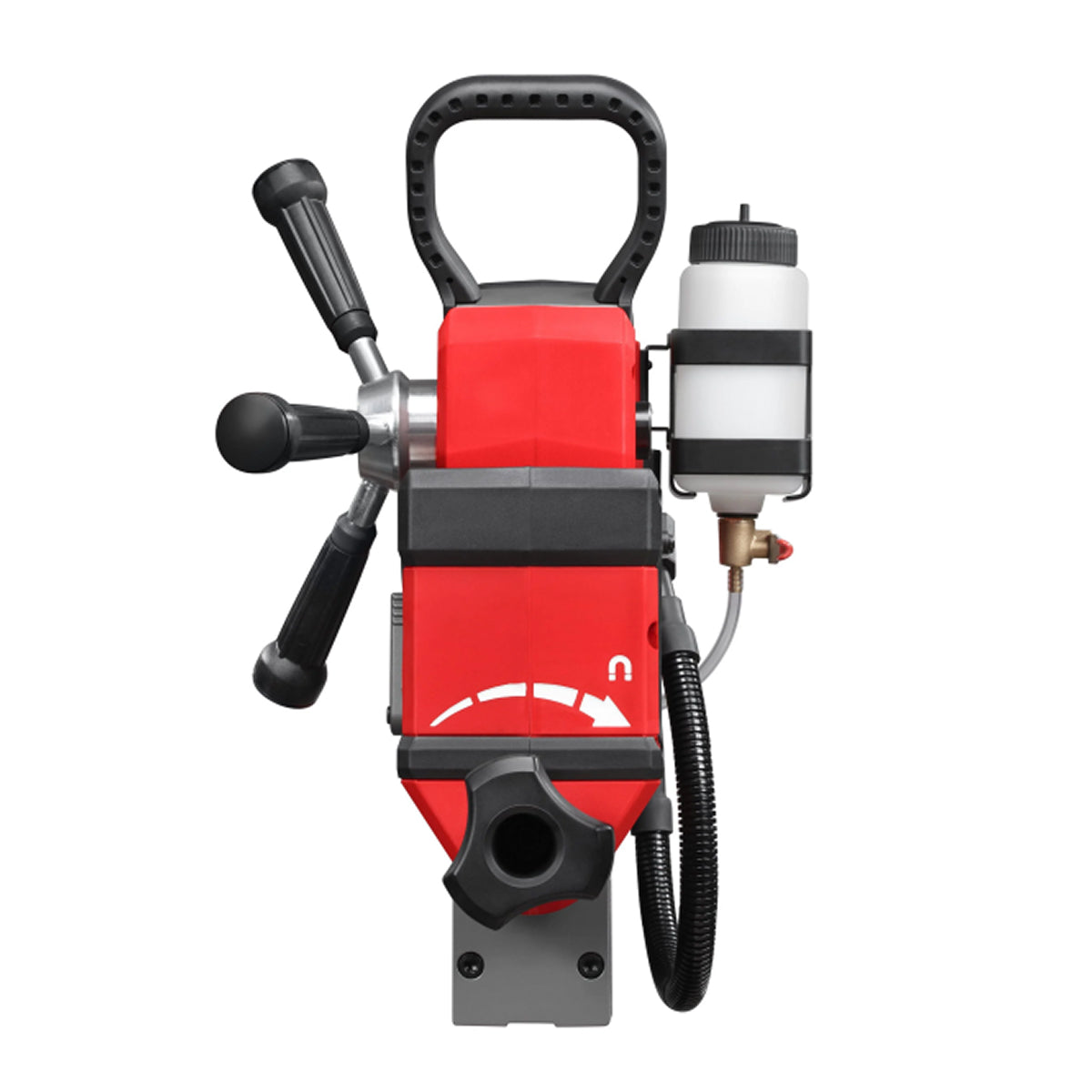

• On board magnet lubrication tank, fixable to the machine or the material for vertical drilling
• REDLINK PLUS electronic intelligence protects tool and battery under load
• Flexible battery system — works with all Milwaukee M18 batteries
• 3 years warranty with online registration

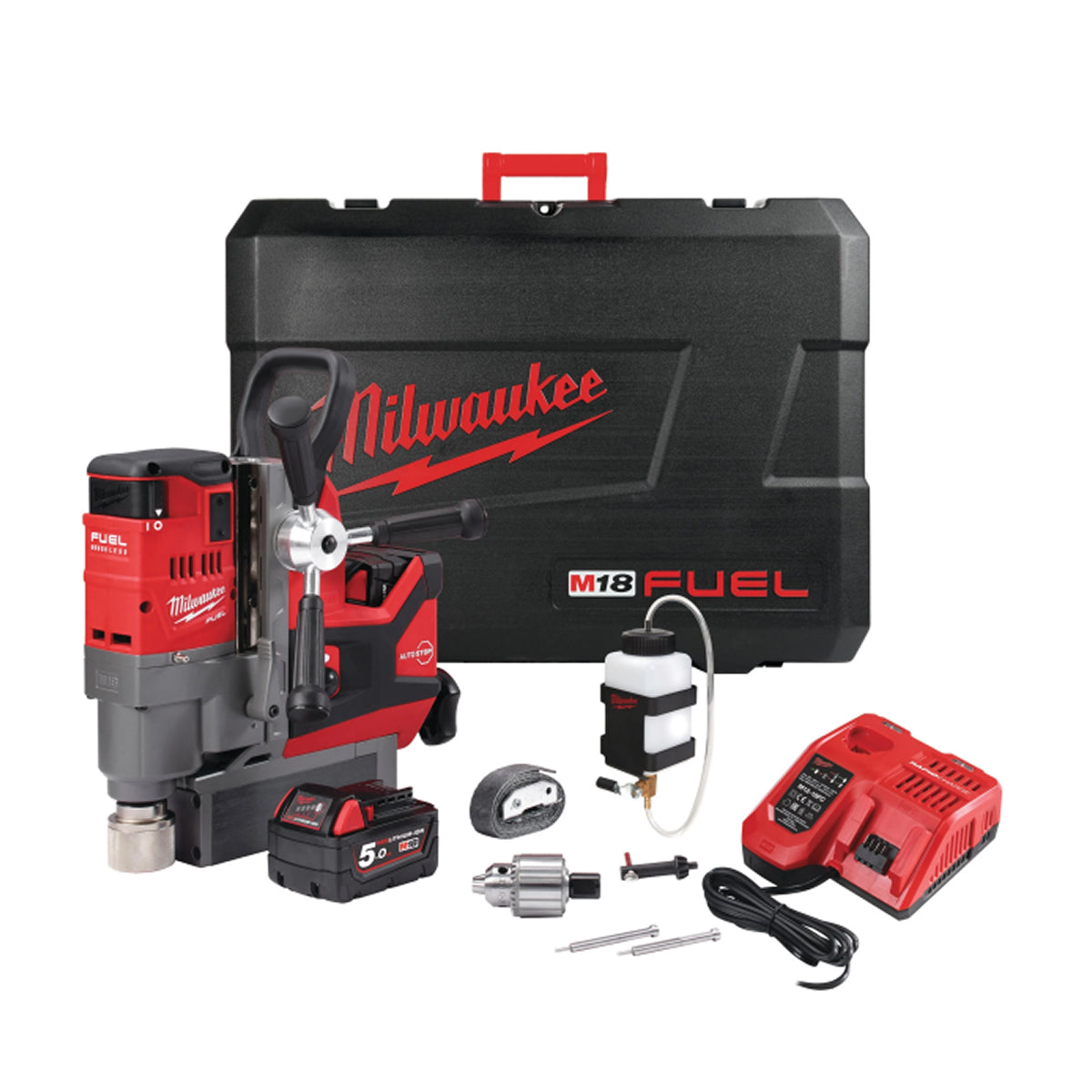

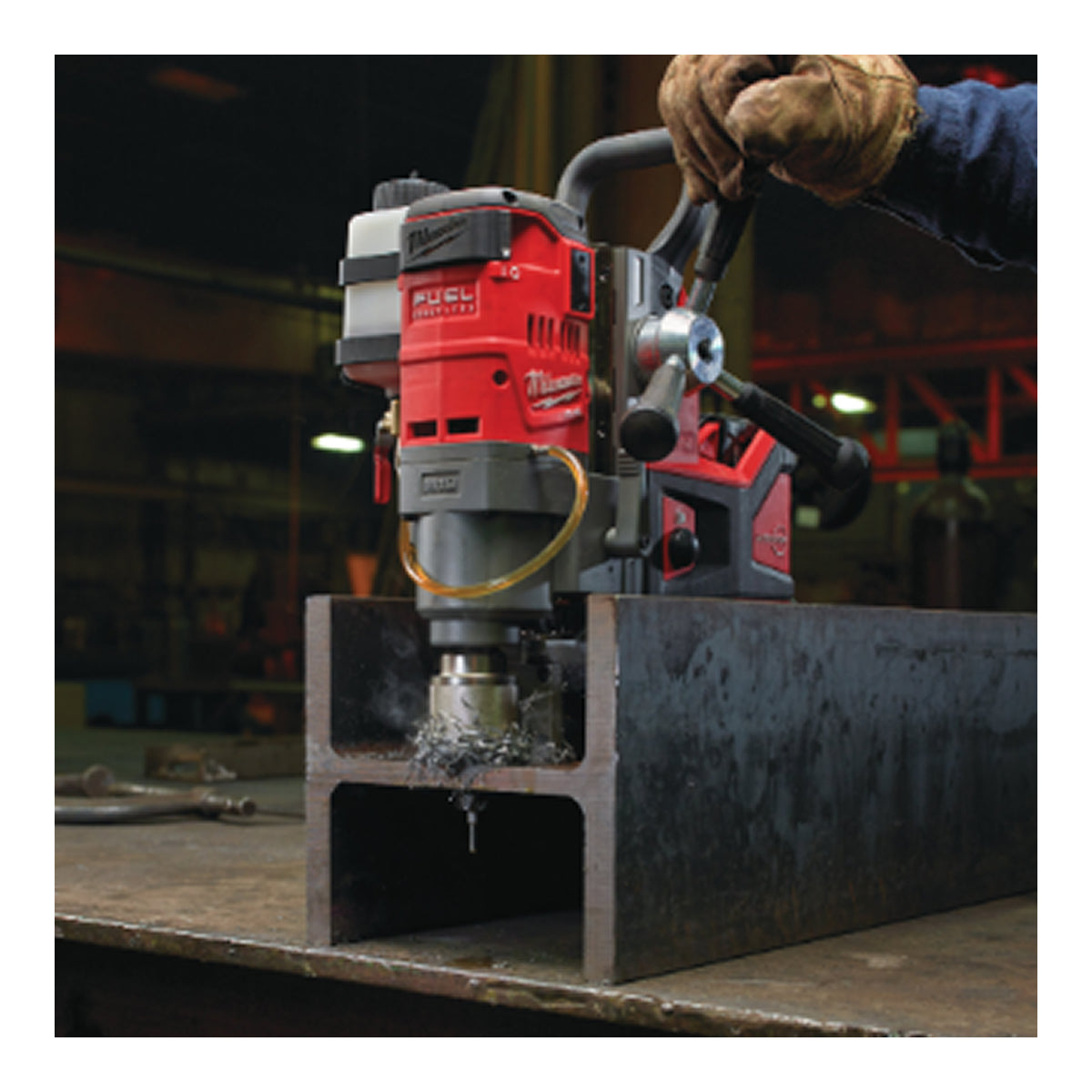

For structural steel erectors, fabricators, bridge and plant maintenance crews drilling on site rather than in the shop. Supplied in a kitbox with lubrication tank and hose, magnetic lubrication tank holder, 13mm chuck with Weldon adaptor, chuck key, ejector pin and safety strap.

Technical Specification

• Voltage — 18V
• Battery Platform — Milwaukee M18
• Motor — POWERSTATE Brushless
• Magnet Type — Self-powered permanent magnet
• Magnetic Holding Power — 8,890N at drill point pressure
• Max Annular Cutter Diameter — 38mm
• Max Depth of Cut — 50mm
• Max Solid Drill Bit — 13mm
• No Load Speed — 400 / 690rpm, two speed gearbox
• Tool Reception — Keyless 19mm Weldon
• Stroke Length — 146mm
• Holes Per Charge — Approximately 40 x 18mm
• Safety — AUTOSTOP lift-off detection, safety strap supplied
• Weight — 12.3kg bare, 13.0kg with M18 B5 (EPTA)
• Batteries Included — None
• Supplied With — Kitbox, lubrication tank with hose, magnetic lubrication tank holder, 13mm chuck with Weldon adaptor, chuck key, ejector pin, safety strap
• Warranty — 3 years with online registration
• Manufacturer Code (MPN) — 4933451636
