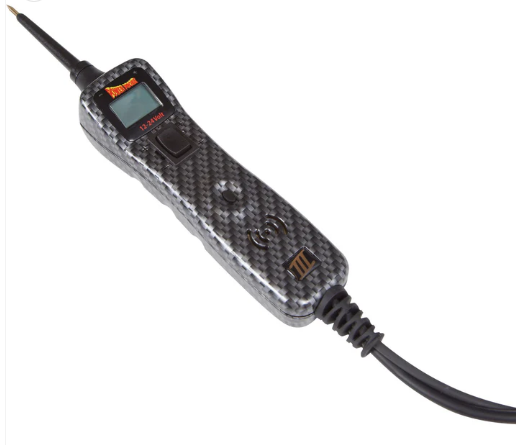

Powerprobe 3 In Blister Pack - Carbon Fibre
Powerprobe 3 In Blister Pack - Carbon Fibre
Product Code:PP-3CSCARB
Out of stock
Couldn't load pickup availability
The original Power Probe PP3 uses a 20ft cable which attaches to the vehicle’s battery, allowing the user to perform an electrical test anywhere in, or around the vehicle.
The PP3 is a Voltmeter and Continuity Tester, with Audible & Visual indicators along with two LED headlights to light up your work area. This circuit tester also supplies Battery Voltage or Ground to activate components. This powerful time-saver tool is perfect for every level of technician.
Features
- DC Voltmeter Indicators provide active feedback
- LED Lights
- Bad Ground –Indicator
- Short Circuit Indicator
- Relay and Component Tester
- Audible Monitoring of Electrical Signals
| Voltage reading |
|
– DC 0 – 70VDC + 1 digit
– P-P 0 – 70VDC |
| Voltage supply |
| – 12/24VDC |
| Frequency response of tone pass through |
| – 10Hz to greater than 10 Khz |
| PP display |
|
– 15Hz Square Wave
– 35Hz Sine Wave |
| Power Probe Mode – Continuity to ground |
|
– First level – display is enabled less than 20K
– Second level – green LED is enabled less than 2K |
| – & + Peak Detector Response |
|
– Single event capture less than 200μs pulse width
– Repetitive events less than 1μs pulse width |
| Peak to Peak Mode |
|
– 0 – 70V + 1 digit
– 4Hz to over 500kHz Square Wave input – 4Hz to over 250kHz Sine Wave input Threshold for PPAC/Audible passthrough |
| Circuit Breaker |
| 8 amp thermal response – Manual reset |
