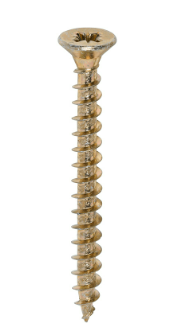

Timco 50050SOLOC Solo Chipboard & Woodscrews PZ Double Countersunk - Yellow (5 x 50mm)

Product Code: 50050SOLOC

Pack Type: Box

Pack Quantity: 200 Pieces

Barcode: 5055017531042

A single thread woodscrew mainly used in various types of timber and man-made boards or into masonry with the use of a plastic plug.

• Double countersunk reduces the likelihood of head shear and assists completion of countersinking
• Wax lubricated to enhance screw insertion time, extra driving torque and resistance to corrosion
• 40° deep single thread to provide a secure fixing with high pull-out resistance
• 25° sharp point and single lead for a fast start and improved thread acceptance
• All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
• Carton Qty (packs) — 15
• Corrosion Rating (1-5) — 1 - Clean, dry & low humidity environments
• Driver Bit Size — PZ2
• Feature 1 — Double countersunk reduces the likelihood of head shear and assists completion of countersinking
• Feature 2 — Wax lubricated to enhance screw insertion time, extra driving torque and resistance to corrosion
• Feature 3 — 40° deep single thread to provide a secure fixing with high pull-out resistance
• Feature 4 — 25° sharp point and single lead for a fast start and improved thread acceptance
• Feature 5 — All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
• Finish — Zinc & Yellow
• Gauge — 10
• Head Ø (mm) — 9.74
• Head Type — Double Countersunk
• Inner Thread Ø d1 (mm) — 3.1
• L (inch) — 2
• L (mm) — 50
• Lubrication — Wax
• Material — Carbon Steel
• MOQ — 1
• MOQ — 1
• MOQ Increment — 1
• MOQ Increment — 1
• Pack Dimensions L x W x H (mm) — 138 x 94 x 62
• Pack Qty — 200
• Pack Quantity Unit — Pieces
• Pack Type — Box
• Pack Weight (kg) — 0.86
• Pallet Qty (packs) — 540
• Point Type — 25° Sharp
• Recess Type — Pozi
• Size (imp.) — 10 x 2
• Size (mm) — 5.0 x 50
• Substrates — Softwood, Chipboard, MDF, Masonry (with plug)
• Thread Coverage — Fully Threaded
• Thread L (mm) — 45
• Thread Ø (mm) — 5
• Thread Type — 40° Single Deep
